Industrial · Hannover Messe 2026
Process Technology Floor
An exposed steel frame carrying nine tonnes of live machinery on an engineered load deck.
- Brand
- Ironpeak
- Exhibition
- Hannover Messe
- Location
- Hannover, Germany
- Stand size
- 180 m² · 18 × 10 m
- Stand type
- Island stand
The story
Ironpeak's machines are the architecture. The stand's job was to hold them safely, light them dramatically and stay out of the way.
Objective
Show three production machines under live operation with certified load and safety clearances.
Solution
A visible black steel frame declares the engineering rather than concealing it. Machine positions were fixed early against hall floor loading limits, and service routes for power, air and extraction were coordinated into the deck before any cladding was designed.
Key features
What is on the floor
- Product Display≈ 6 m²
- Meeting Room≈ 9 m²
- Storage≈ 4 m²
- LED Wall≈ 3 m²
Gallery

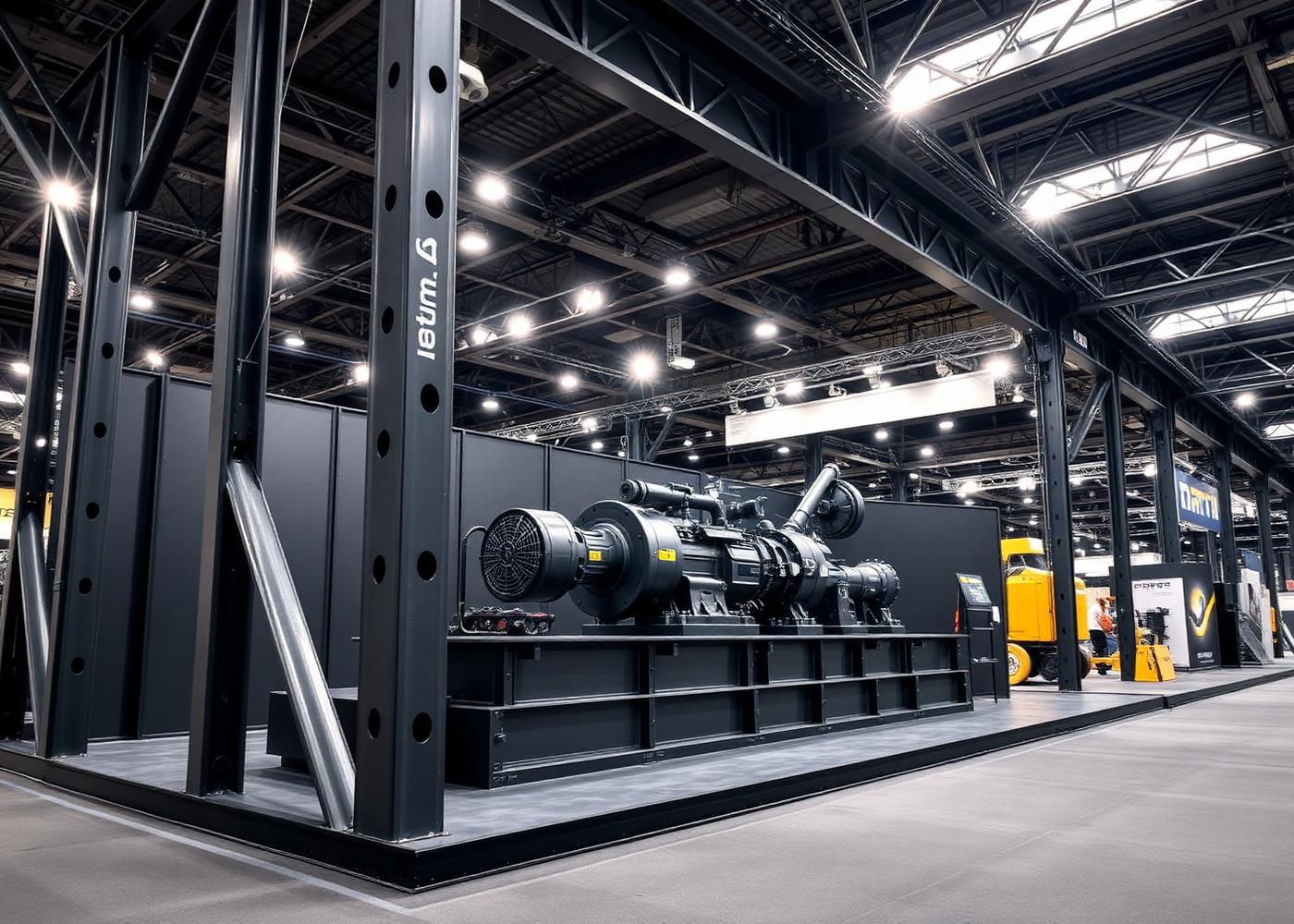

Built detail
Technical snapshot
Engineering data
- Structure
- Bolted steel portal frame, engineered load deck rated to 1200 kg/m² at machine positions
- Materials
- Powder-coated steel, dark grey HPL cladding, industrial rubber flooring, safety glazing
- Lighting
- High-output track at 4000K, 1100 lux on machine faces, task lighting at operator stations
- AV & digital
- 6.0 × 2.5 m LED wall at 3.9 mm pitch, 4 × process telemetry displays
- Graphics
- Direct-print on aluminium composite, machine-side safety and spec panels
- Build time
- 6 build days including machine placement, 2 dismantle days, 24-person crew
- Reusability
- 72% — steel frame is a standing asset across the client's show calendar
- Logistics
- Four trailers plus two heavy-machine transports, crane slot coordinated with hall management
Layout diagram
Schematic demo layout generated from the recorded stand dimensions (18 × 10 × 5.5 m). Not a construction drawing.
